Project · Entertainment · Display Optimisation
City Recital Hall LCD Upgrades
City Recital Hall’s street-facing digital signage was upgraded with high-brightness commercial LCD displays, integrated monitoring and improved temperature management for reliable performance in a demanding CBD environment.
In collaboration with
In Motion
Watch the Installation
System Specifications
engineered to perform. Built to redeploy.
Display Area
8 SQM
Resolution
3840 × 2160
Brightness
4000 nits
Control System
LG WebOS
CMS
Signage Live
Display Technology
LCD / LCD Display
Outdoor LED
Semi-Outdoor LED
System Features
Glare Reduction System
Passive Cooling
Remote Monitoring
01
The Challenge
City Recital Hall required reliable street-facing digital signage capable of delivering clear event and venue messaging in a high-ambient-light CBD environment. The existing displays needed to be replaced while retaining the existing enclosure locations, with improved monitoring, temperature management and ongoing serviceability.
02
The Solution
Pixel Perfect Projects supplied, installed and configured high-brightness LG commercial LCD displays suited to window-facing and street-facing signage applications. The displays were integrated with Signagelive for content playback, along with a temperature monitoring system, cooling fans and remote monitoring to support reliable operation and ongoing maintenance.
03
The Technology
The project used 75-inch LG high-brightness commercial LCD displays, providing UHD resolution and strong daylight visibility for public-facing content. The displays are managed through Signagelive for scheduled playback, with additional temperature sensors, cooling fans and remote monitoring to help manage the internal enclosure environment and support remote fault checking.
04
The outcome
The upgraded displays improved visibility, reliability and serviceability across City Recital Hall’s external signage network. The addition of temperature monitoring, cooling fans and remote access gives the venue a cleaner, more dependable platform for event promotion, public communication and ongoing operational support.
Gallery

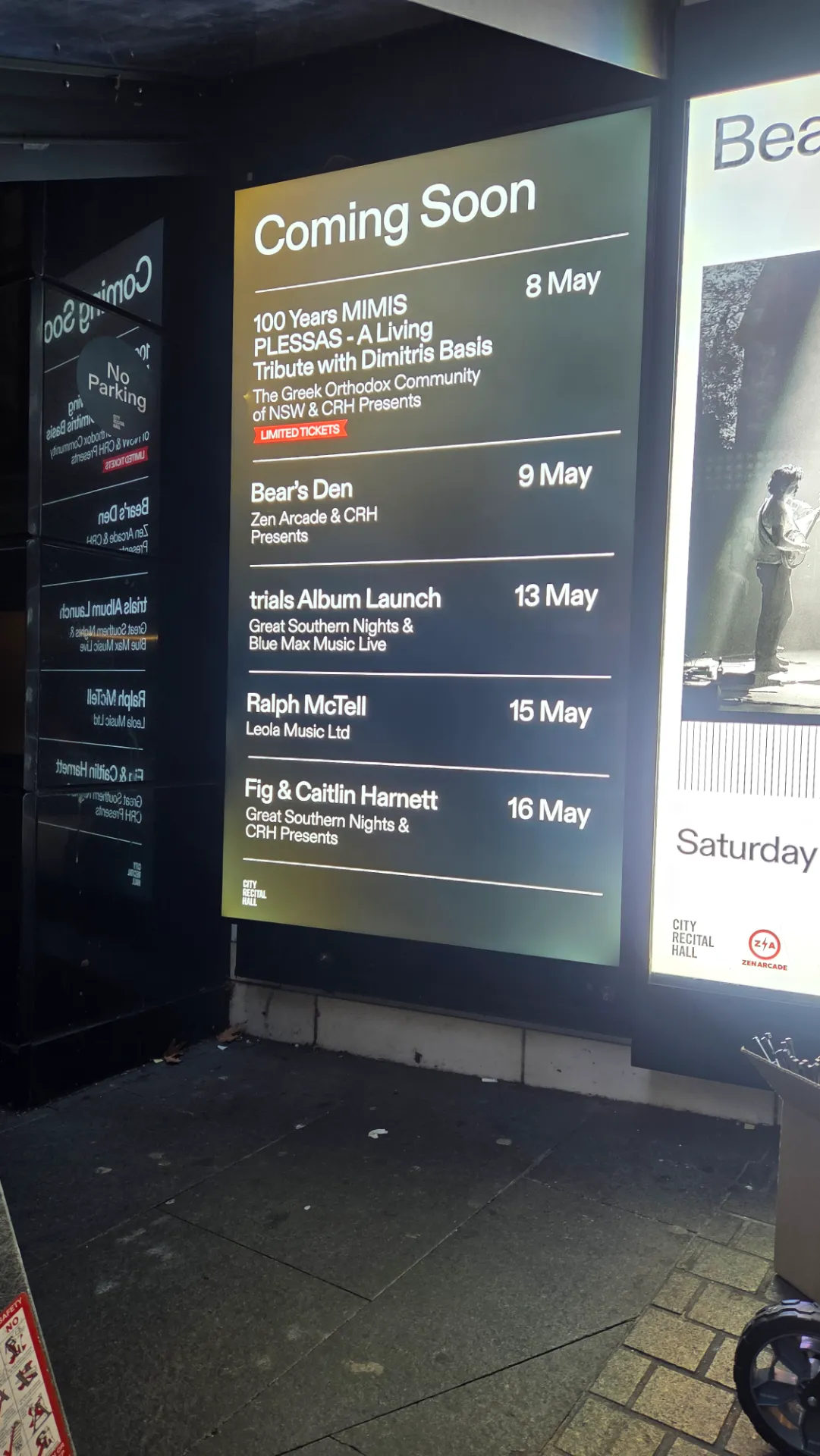

On Site
Image Credit ·
Pixel Perfect
Project Highlights
Key areas that define the build.
01
High-Brightness Street Visibility
4000-nit commercial LCD displays improve content visibility in bright CBD conditions.
02
Existing Enclosure Integration
Displays were installed into existing external signage positions with careful alignment and commissioning.
03
Temperature Sensor Installation
Temperature sensors were installed to monitor conditions inside the display enclosures.
04
Cooling Fan Installation
Cooling fans were installed to improve airflow and help manage heat around the display shelves.
05
Remote Monitoring
Remote monitoring was added to support fault checking, system visibility and ongoing maintenance.
06
Commercial Display Upgrade
The upgrade replaced ageing screens with purpose-built commercial LCD display technology.
" "
· ·
